First in industry : Convection cooled (cable) DC charger above 300kW
By adopting ultrasonic welding technology,
the contact resistance got reduced to ¼, which achieves the following benefits
- Reduce equipment cost by 20+%
- Improve energy efficiency
- Reduce maintenance costs
- 60kWh in 10 minutes (approx. 400 km range)
Specifications
- DC Output Power: 360kW
- Industry-leading compact size (710mm x 750mm x 2200mm) and footprint
- Maximum current: 350A (peak 500A)

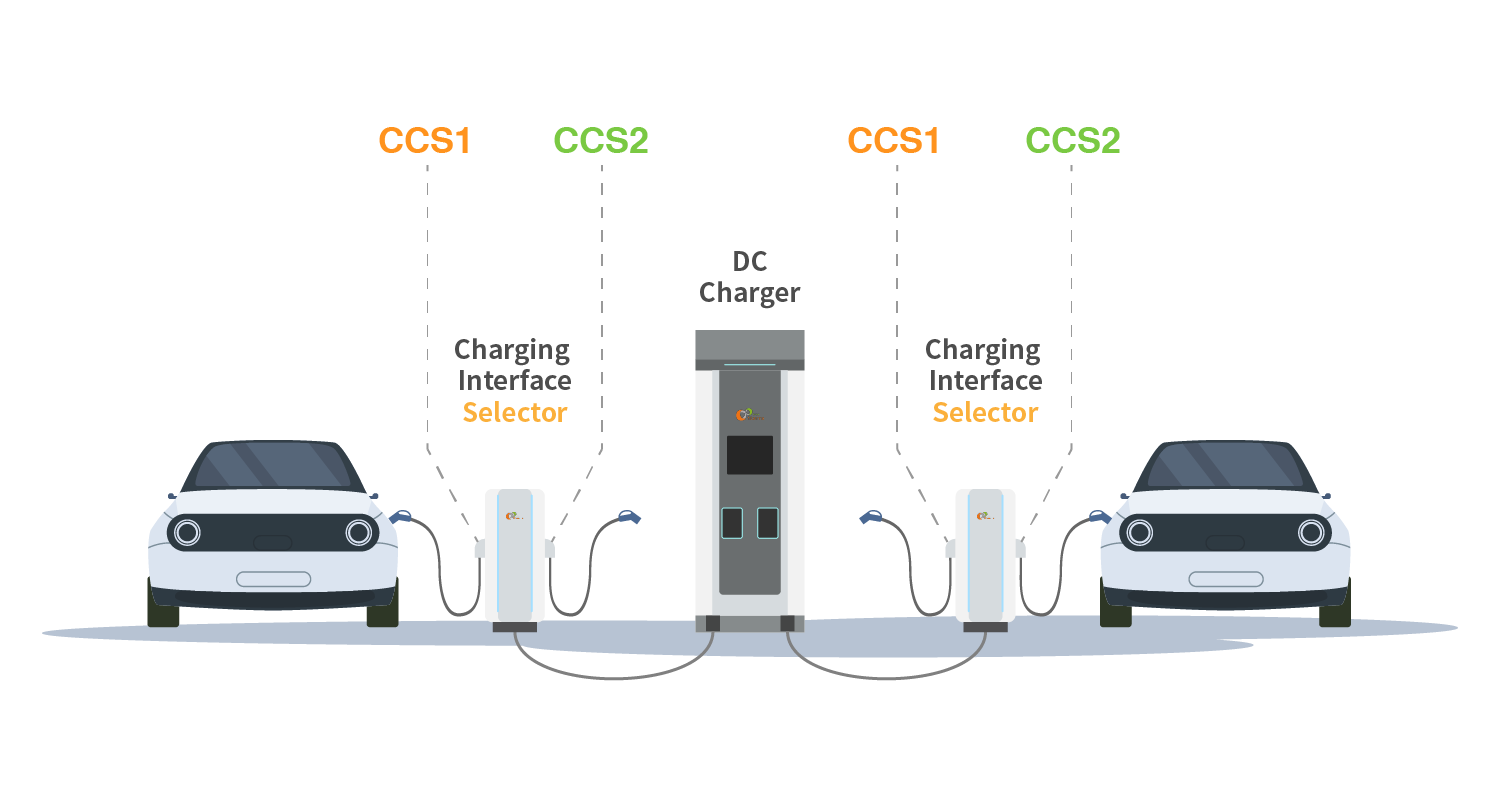

- Charging coupler: CCS1, CCS2
- Wide output voltage range: 200V to 1000V
- Built-in RFID reader and QR code display
- Supports OCPP 1.6J
- Cybersecurity certified
- OCTT verified
- OTA remote firmware upgrade
- DC module PCBs coated with UL-certified epoxy
- Optional AC meter
- Certified by CE, and metrology
Specifications
- DC Output Power: 360kW
- Industry-leading compact size (710mm x 750mm x 2200mm) and footprint
- Maximum current: 350A (peak 500A)
- Charging coupler: CCS1, CCS2
- Wide output voltage range: 200V to 1000V
- Built-in RFID reader and QR code display
- Supports OCPP 1.6J
- Cybersecurity certified
- OCTT verified
- OTA remote firmware upgrade
- DC module PCBs coated with UL-certified epoxy
- Optional AC meter
- Certified by CE, and metrology
